X444 Black

characteristic:

1.1 the motor is equipped with an automatic recovery temperature protector

1.2 heavy duty, direct drive powerful motor

1.3. Low noise

1.4 oil free design

1.5. High strength stainless steel airtight valve

1.6. High performance wear-resistant piston ring

1.7 anode aluminum alloy cylinder

1.8 low noise durable air pump and motor provide quiet work and long service life

1.9 moisture and dust prevention

2.0 heat resistant steel-clad yarn rubber tube, equipped with one-way valve and rotary joint

2.1 double layer filter, which can be installed remotely

2.2 equipped with shock-absorbing foot pads

Consult

Service Hotline

13886501872
13809667059

Product Description

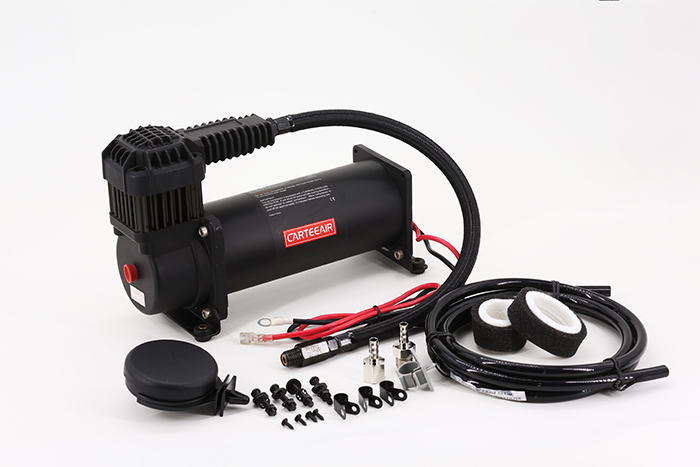

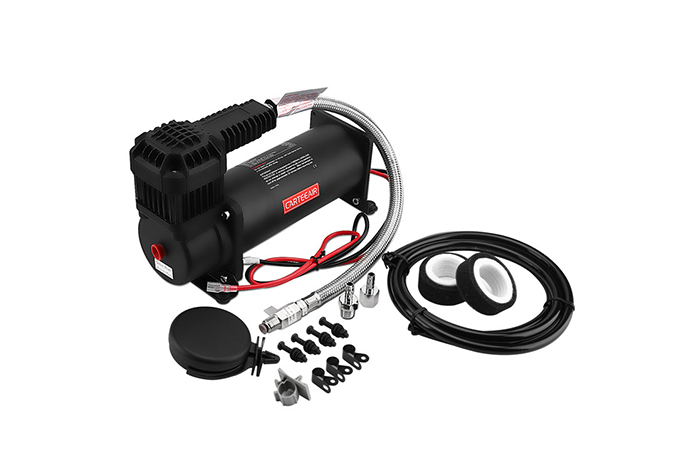

Included accessories: installation screw set, shock absorption foot pad, remote installation filter set, steel wrapped yarn rubber tube, check valve, filter foam set (replacement)

Specifications:

12-Volt

Permanent magnet motor

Working cycle: 100% @ 100 PSI

Maximum working pressure: 200 PSI

Maximum current: 23 Amps

Maximum instantaneous pressure： 250PSI

性能數(shù)據(jù)
PSI	CFM	A	BAR	LRM	A
0	1.76	10	0	50	10
10	1.66	12	1	46	13
20	1.59	14	2	43	14
30	1.52	15	3	40.5	17
40	1.45	16	4	38.5	18
50	1.41	17	5	35.5	19
60	1.34	18	6	33	19
70	1.27	18	7	31.5	19
80	1.2	19	8	29.5	20
90	1.16	19	9	27	20
100	1.13	19	10	25	19
110	1.06	20	11	23	19
120	1.02	20	12	20.5	19
130	0.95	20	13	18	18
140	0.92	19	14	15.5	18
150	0.85	19
160	0.81	19
170	0.74	19
180	0.7	19
190	0.63	18
200	0.56	18	電源電壓: 13.8 Volts

充氣速度
2.5 Gallon Tank	Fill Rate
0 To 145 PSI	2 Min. 29 Sec.
110 To 145 PSI	57 Sec.
0 to 200 PSI	5 Min. 02 Sec.
165 to 200 PSI	1 Min. 23 Sec.
5.0 Gallon Tank	Fill Rate
0 To 145 PSI	6 Min. 02 Sec.
110 To 145 PSI	1 Min. 55 Sec.
0 to 200 PSI	10 Min. 08 Sec.
165 to 200 PSI	2 Min. 20 Sec.
