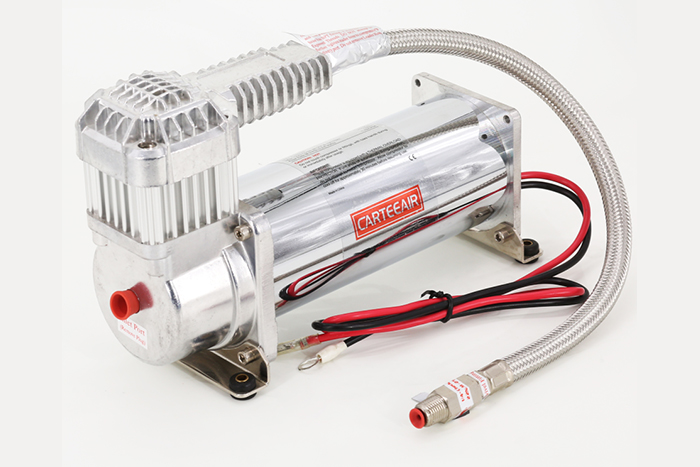

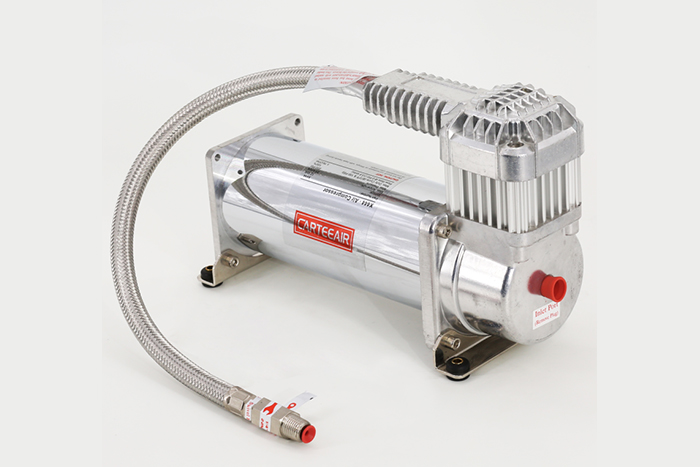

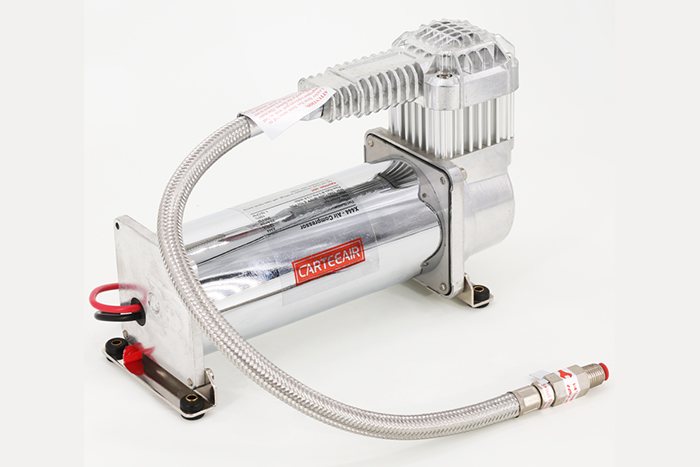

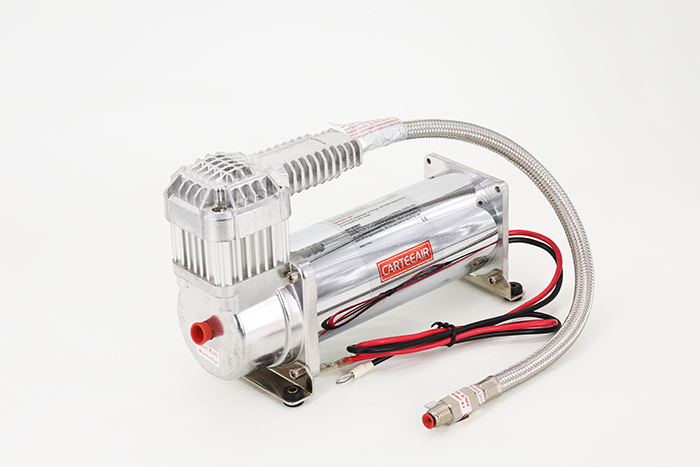

X444 Chrome

X444 air compressor is a 100% duty cycle compressor that works quickly and efficiently putting out 1.76 CFM flow at 0 PSI.

It includes a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Features:

duty cycle: 100% @ 100 psi

flow rate: 1.76 cfm @ 0 psi

max working pressure: 200 psi

intermittent pressure: 300 psi

volt: 12v

amp: 23a

ingress protection rating: ip67

cylinder: Φ40mm

Consult

Service Hotline

13886501872
13809667059

Product Description

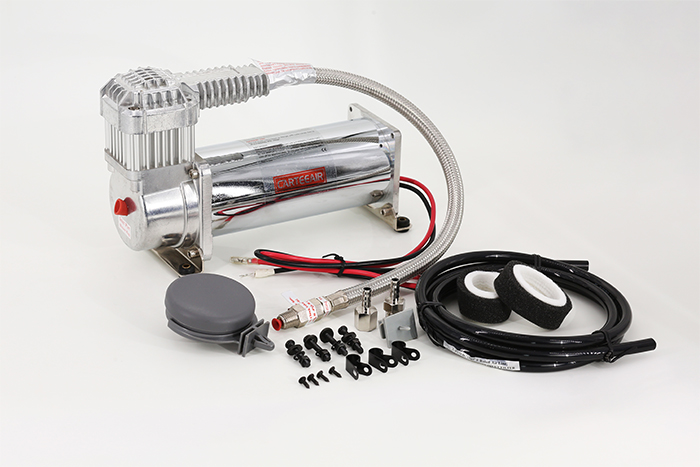

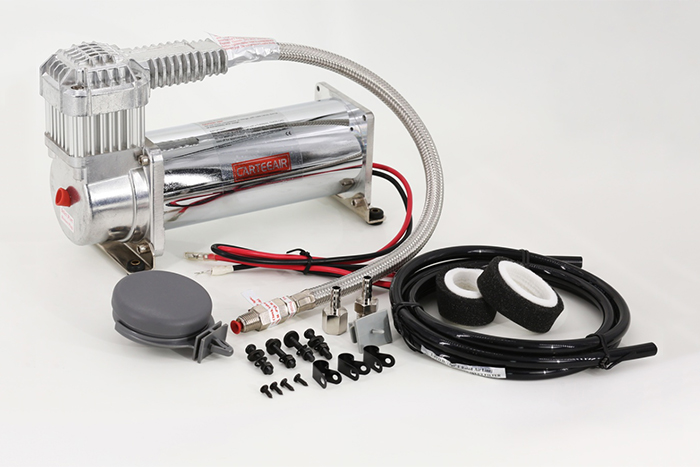

Accessories:

mounting hardware (nuts, bolts, locking washers)

vibration isolators

remote mount air filter assembly

two replacement air filter elements

air line for remote mount air filter installation

stainless steel braided leader hose

check valve

Parameter:

PSI	CFM	A	BAR	LPM	A
0	1.76	10	0	50	10
10	1.66	12	1	46	13
20	1.59	14	2	43	14
30	1.52	15	3	40.5	17
40	1.45	16	4	38.5	18
50	1.41	17	5	35.5	19
60	1.34	18	6	33	19
70	1.27	18	7	31.5	19
80	1.2	19	8	29.5	20
90	1.16	19	9	27	20
100	1.13	19	10	25	19
110	1.06	20	11	23	19
120	1.02	20	12	20.5	19
130	0.95	20	13	18	18
140	0.92	19	14	15.5	18
150	0.85	19
160	0.81	19
170	0.74	19
180	0.7	19
190	0.63	18
200	0.56	18

*Voltage: 13.8 V

CARTEEAIR offers the most comprehensive line of 12-volt and 24-volt air compressors for both the on-and off road markets available anywhere. Our quality engineered compressors and components are also used in the OEM segment, and have become the industry standard for automotive aftermarket applications worldwide.

Note:
? Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the air compressor. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor.

? Max. operating temperature: +158°F,
? Min. operating temperature: -40°F (unless otherwise noted).

Applications:

1)Air Suspension System

2)Air Horn

3)Air Locker

4)Air Brake Assist

5)Air Seat Suspension

6)Agricultural Machinery

7)Industrial

8)Medical
